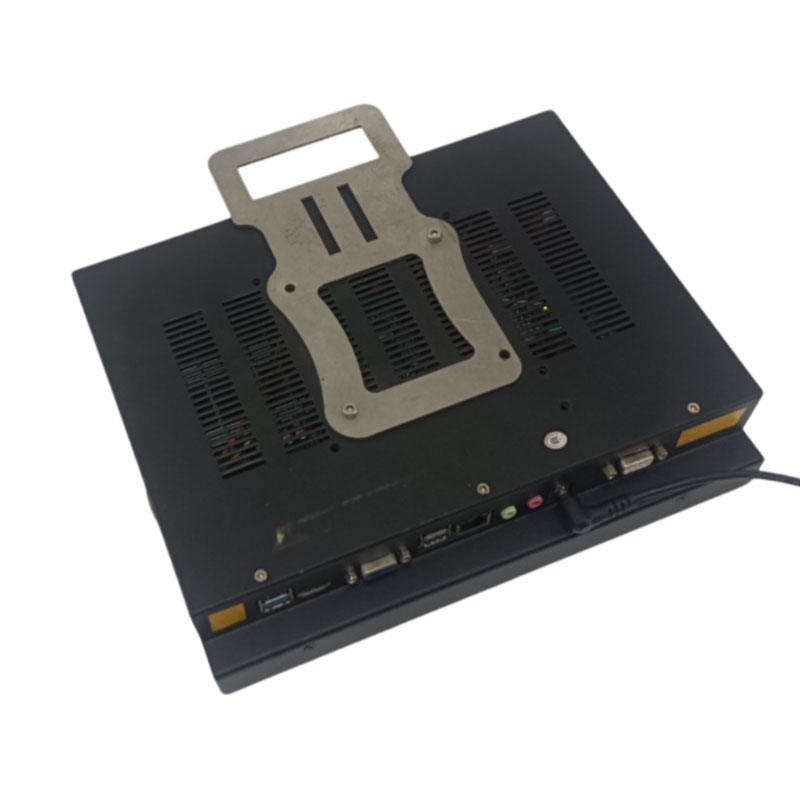

1. User-friendly HMI with 30-minute learning curve 2. Rapid 2-minute mold setup protocol 3. Space-efficient wall-mount design 4.Position Monitoring ◆ Slider position verification ◆ Ejector pin return confirmation ◆ Insert placement validation 5.Component Integrity ◆ Ejector pin breakage detection ◆ Multiple cavity presence checking ◆ Multi-color injection accuracy verification 6.Quality Inspection ◆ Material shortage detection ◆ Flash/burr identification ◆ Complete demolding verification 7.Process Optimization ◆ Minimizes unnecessary ejector movements ◆ Prevents consecutive defective products ◆ Reduces mold release agent usage ◆ Suitable for difficult-to-demold products 8.Stationary Mold Residual Part Detection When molded parts remain in the stationary mold, a cavity forms on the moving mold side. This cavity will be detected by the mold protection system, triggering an alarm. 9. Insert Monitoring System ◆ Automatic insert detection during molding process ◆ Validates correct insert quantity ◆ Confirms proper insert positioning 10.Short Shot Detection When insufficient filling occurs, it affects both the product shape and surface finish. For large molded parts, short shots often occur at specific points. The Magic Eye 2 can focus monitoring on these critical points. 11.Failed Part Ejection Detection When products fail to drop after one or multiple ejection attempts, closing the mold becomes extremely hazardous, especially for high-value molds. At this critical moment, the mold protection system intervenes by issuing a mold-closing prohibition signal, preventing costly mold damage.

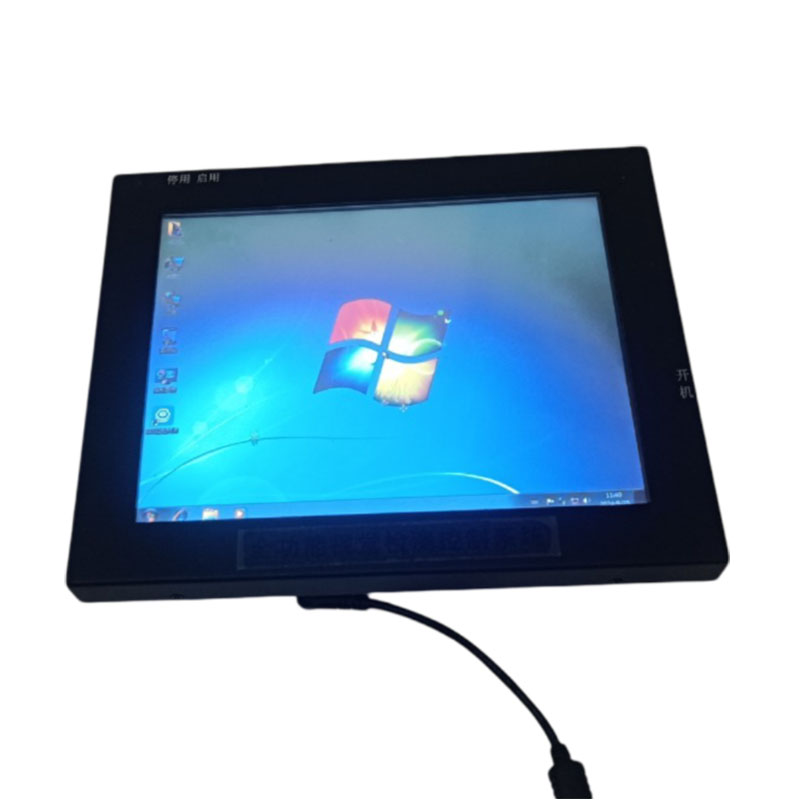

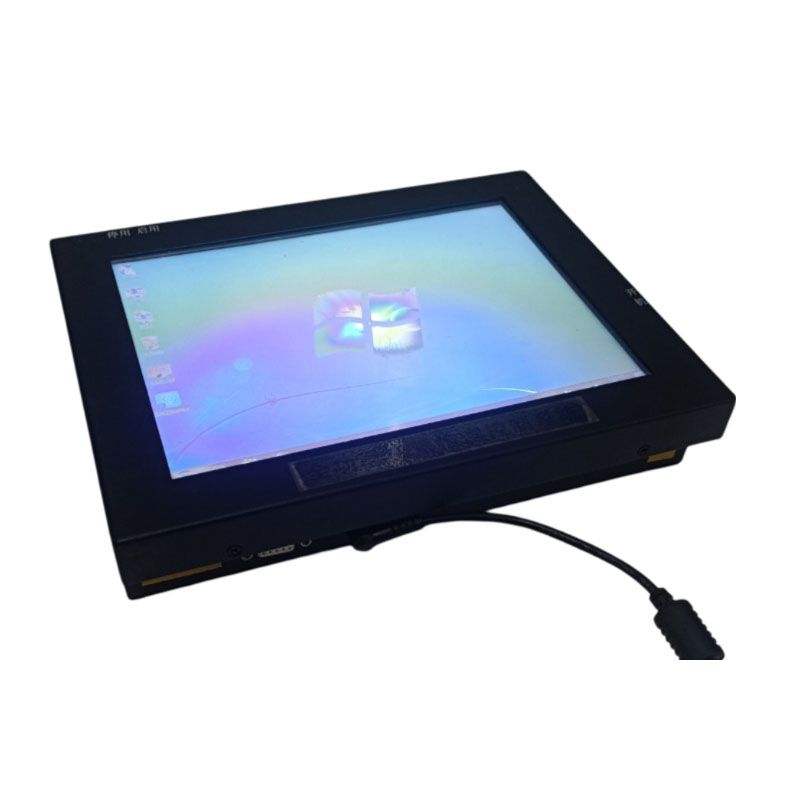

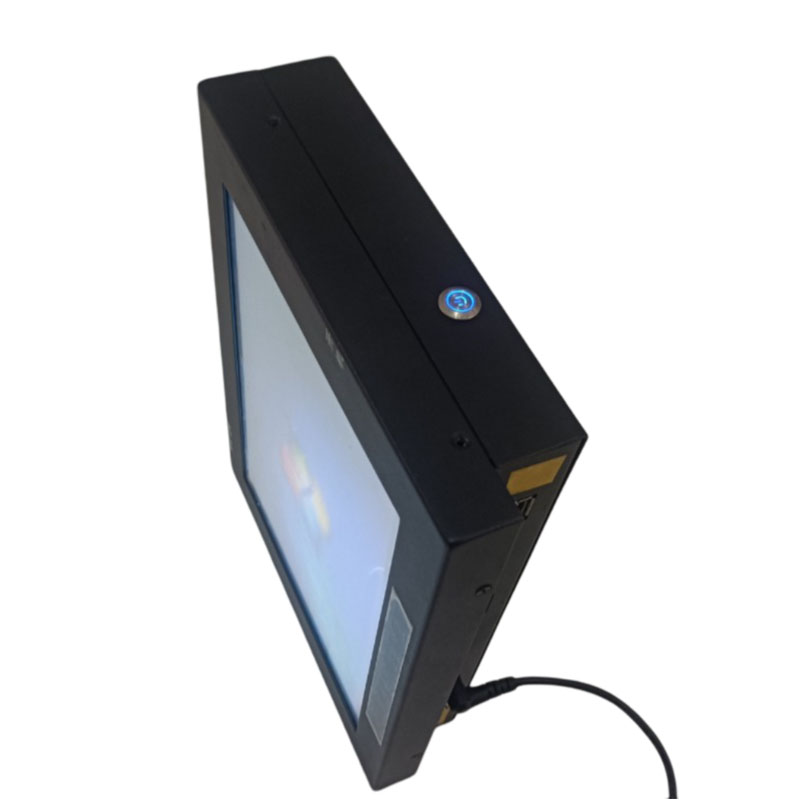

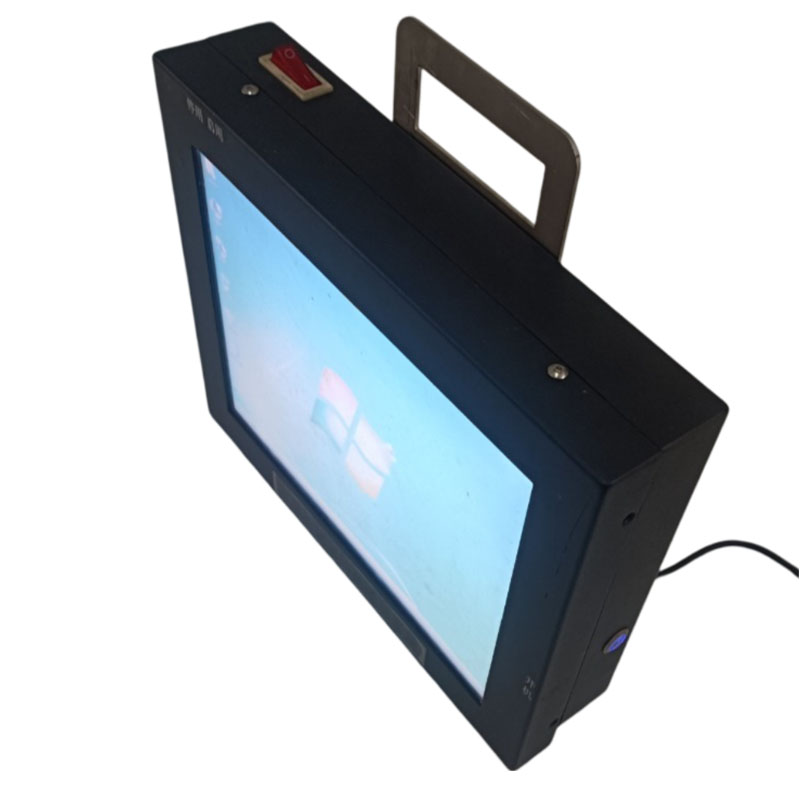

Mold Protector For more details, please refer to the linked manual
