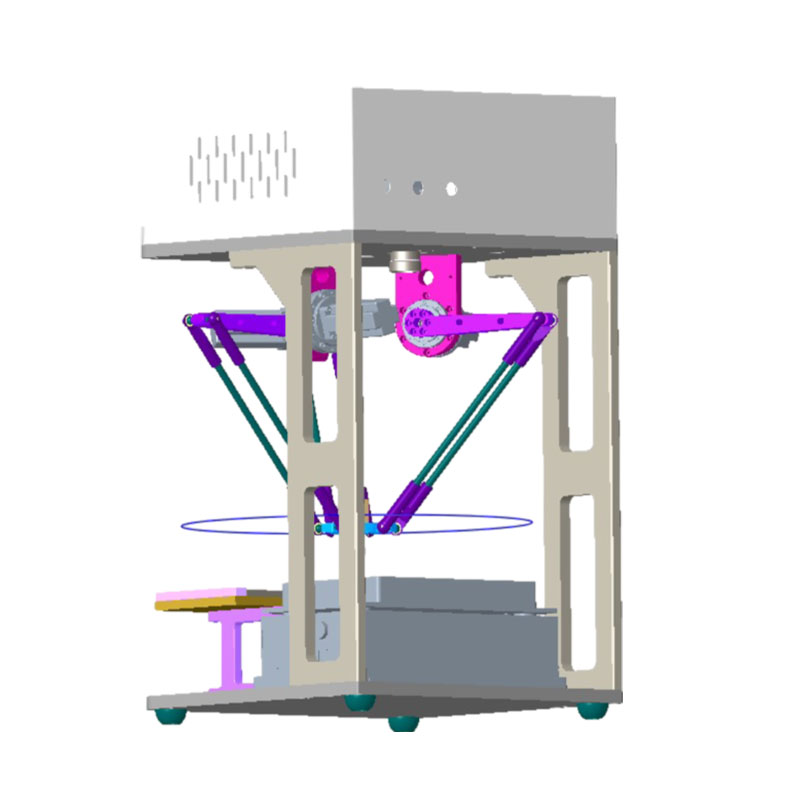

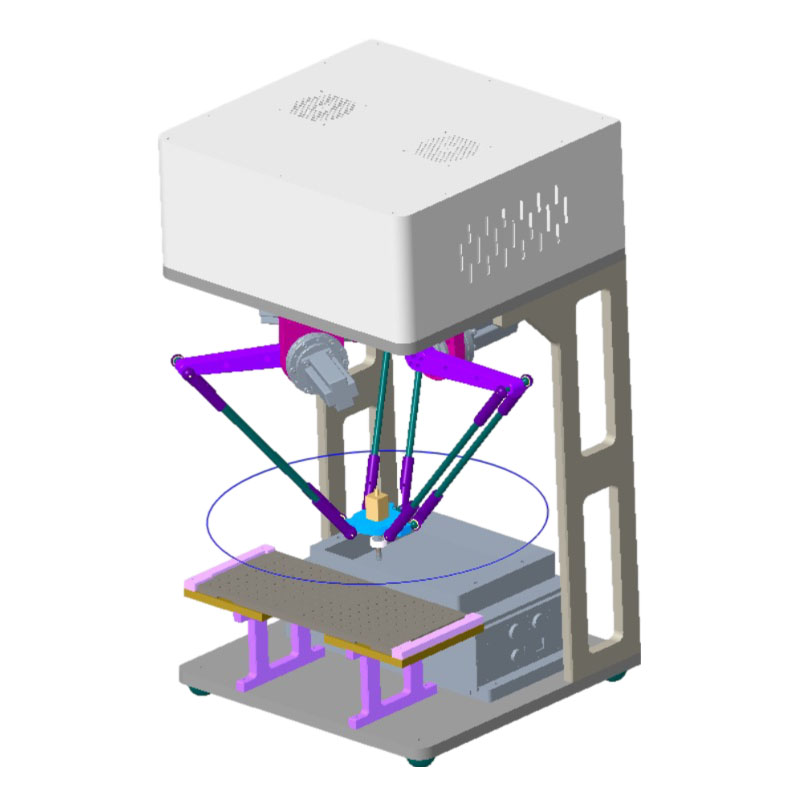

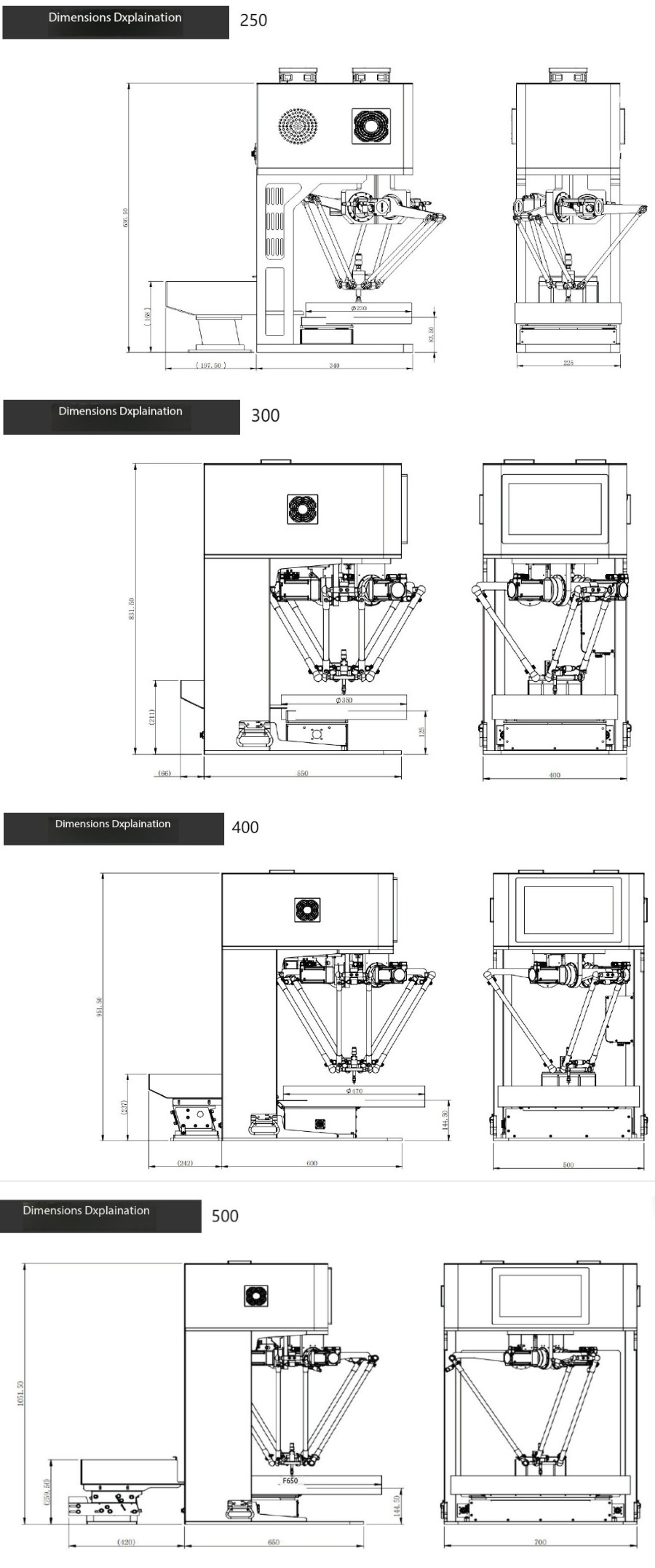

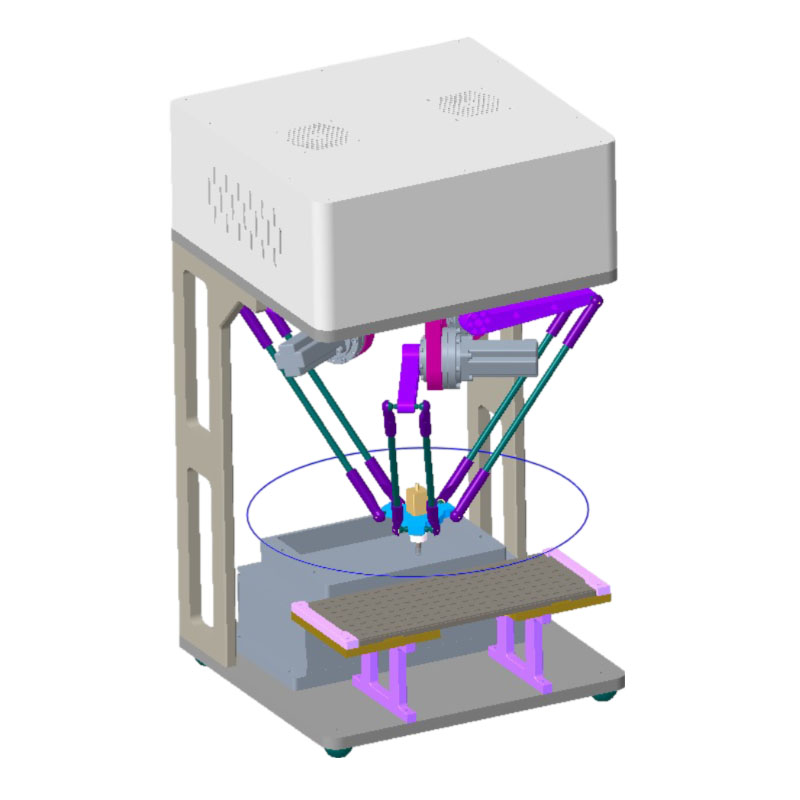

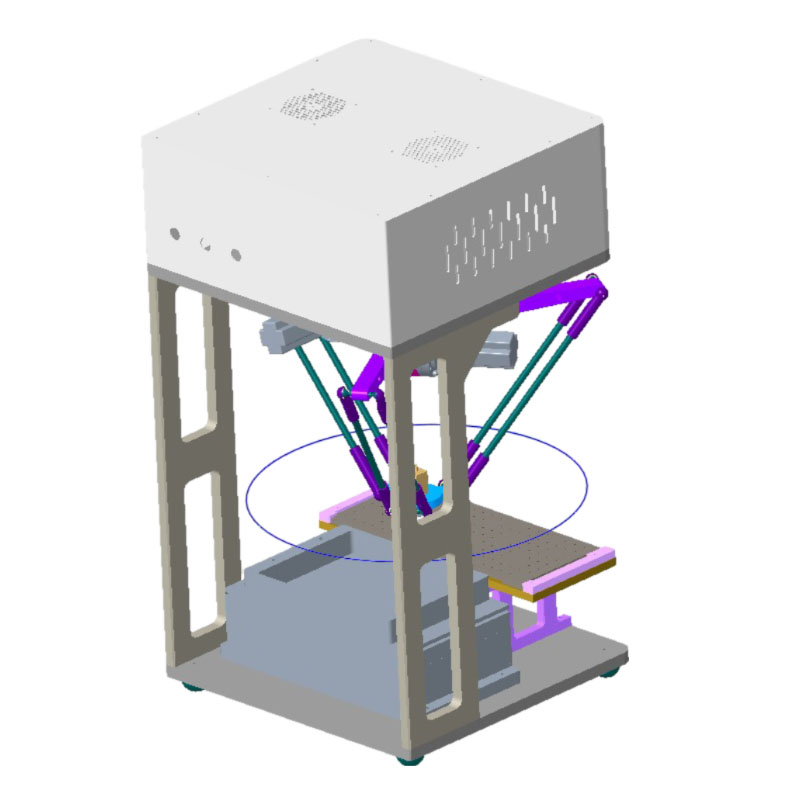

Spider Hand Plate Arrangement Machine Specifications ●Optical System: 2 sets of vision systems (flexible vibration bowl positioning camera + fly-by camera) ● Delta Robot: 250 mm arm length, 0.3 kg load capacity ●Vibration Bowl Size: dimensions 150 x 100 mm ●Refilling Bin Capacity: 2L horizontal flow refilling bin ●Number of Suction Cups: 1 ●Control System: Proprietary integrated control system of robotic, vision, and flexible vibration bowl systems ●Plating Speed: 3000 to 4500 pieces per hour, depending on product size and front-end vibration bowl differences (plating speed does not include debugging time) ●Plating Precision: Without fly-by: ±0.2 mm, With fly-by: ±0.05 mm ●Plating Size: 150 x 100 mm ● Tray Loading Method: Manual loading and unloading of trays ●Power Configuration: 220V, 50Hz, power: 2kW (110 to 220V converters available) ● Air Pressure: 0.35 to 0.7 MPa ●Device Weight: 300 kg ●Equipment Dimensions: 537 mm (length) × 225 mm (width) × 636 mm (height) ●Operating Temperature: 0°C to 50°C For more details, please refer to the linked manual
