16 In 16 Out API SDK Optocoupler Serial Port Control Card

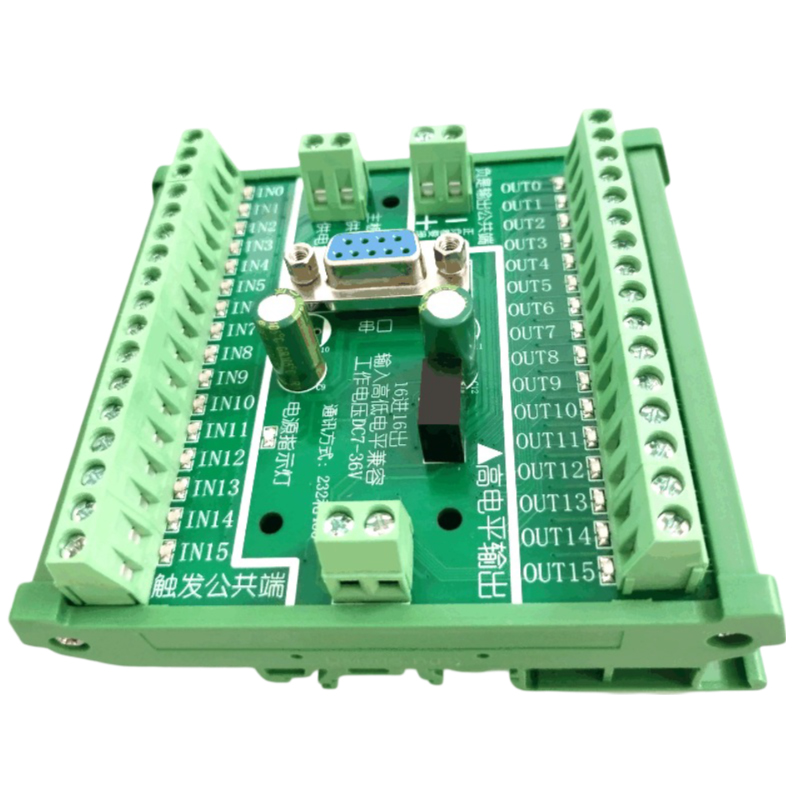

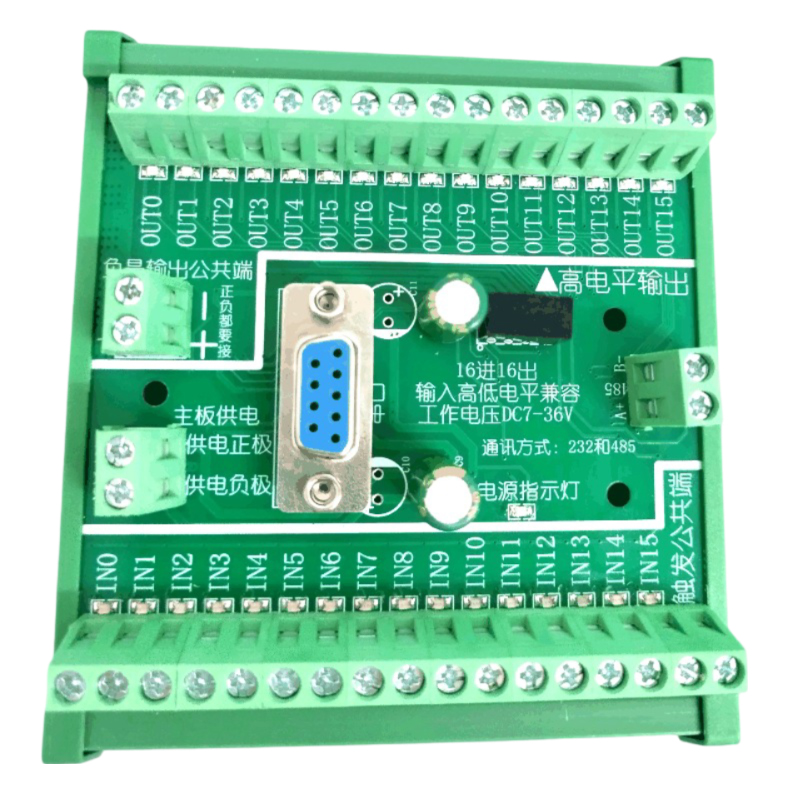

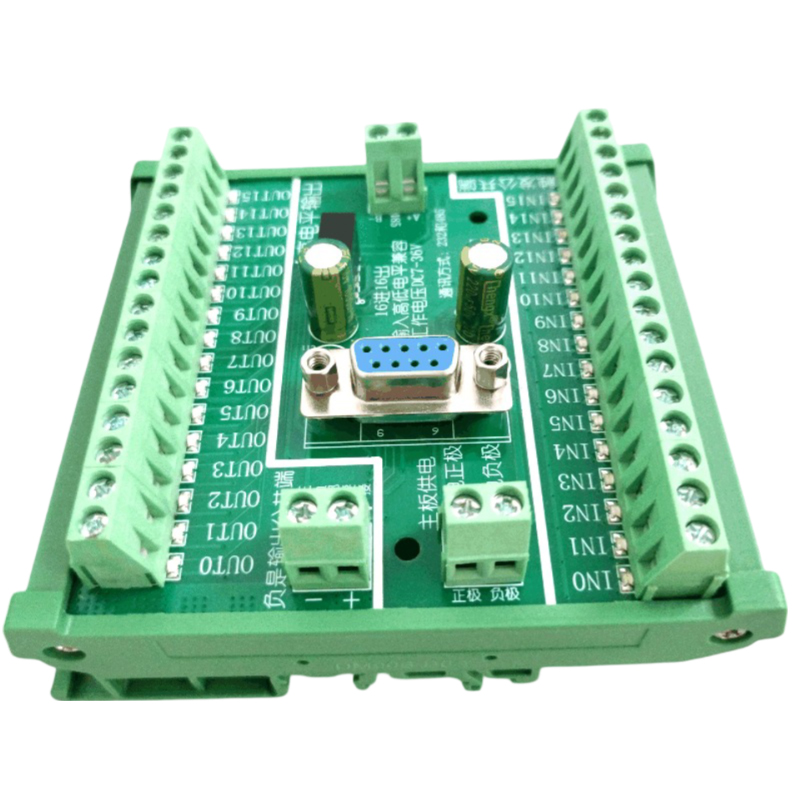

G1616B high level output

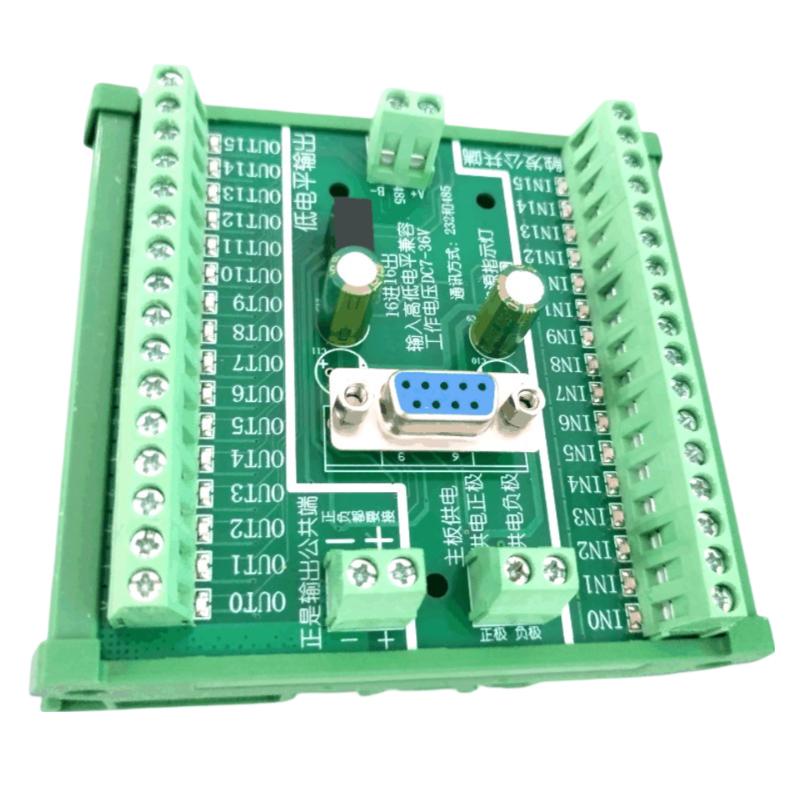

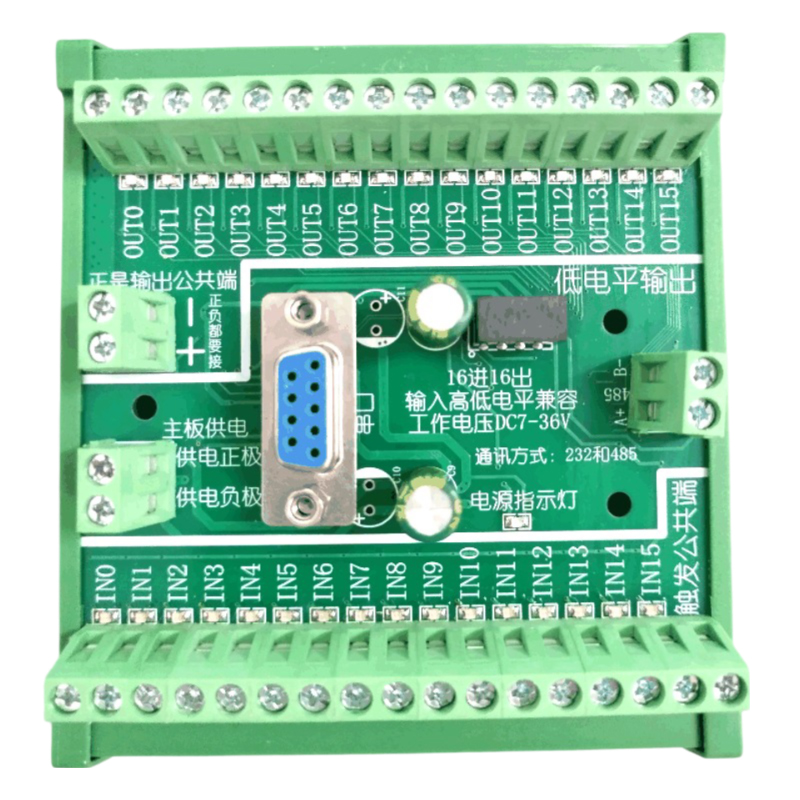

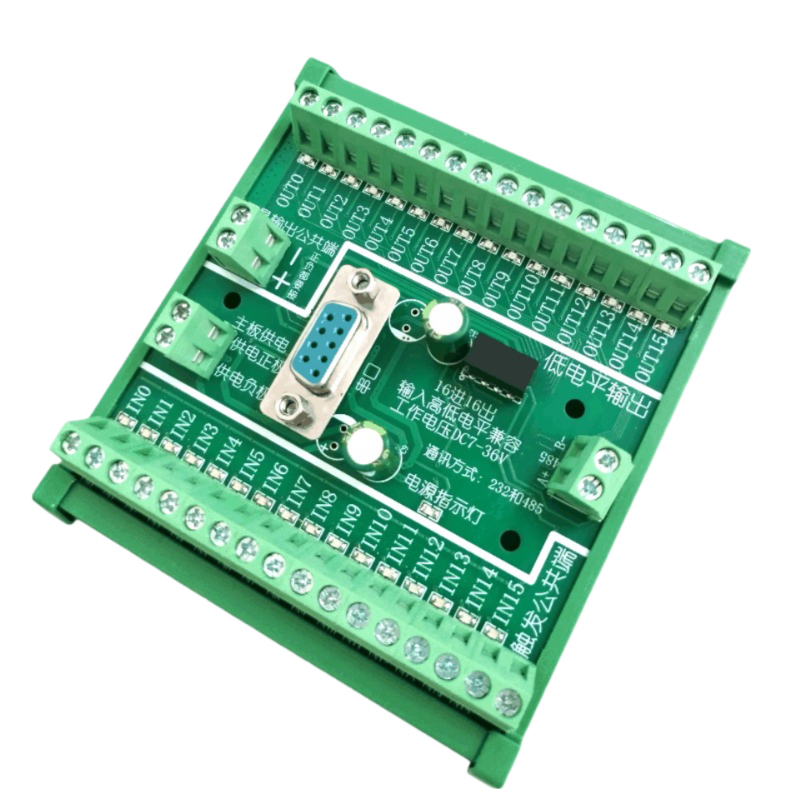

G1616B low level output
Board working voltage: DC 7~36V.
Input mode: PNP/NPN compatible input.
Communication quantity: 16 inputs, 16 outputs.
Output model: high/low level output optional.
Installation method: standard electrical cabinet rail buckle.
Use: Applicable to projects with few ports.
Features: The board can be external, without PCI slot, connected and used through the COM port of the industrial computer.
Advantages: Multiple Demo development languages, support 32-bit and 64-bit programming development
Application wiring: See the high-level or low-level input application diagram for details.
