Board working voltage: DC 7~36V.
Input mode: PNP/NPN compatible input.

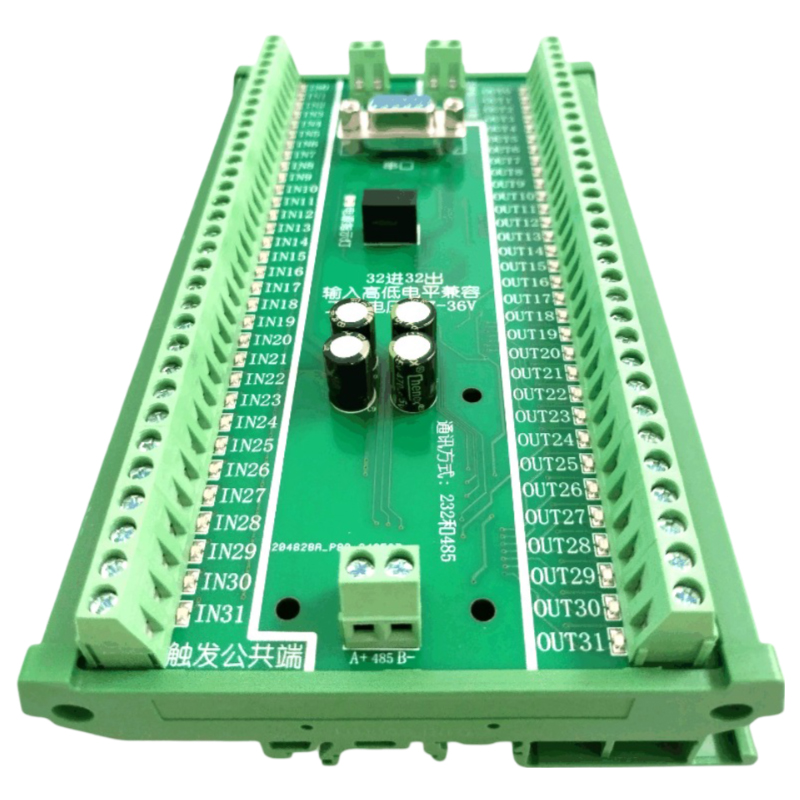

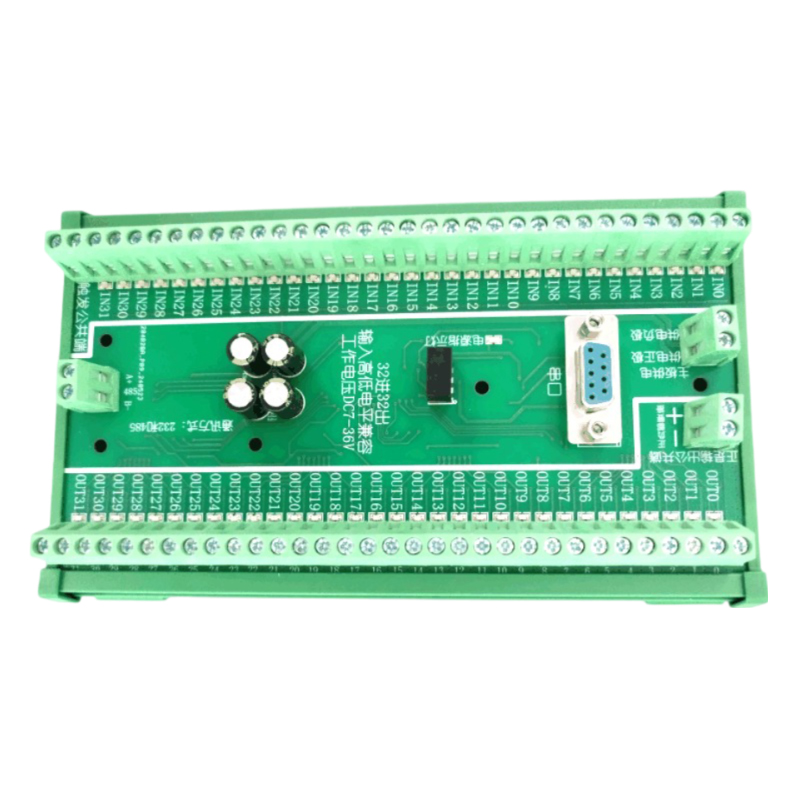

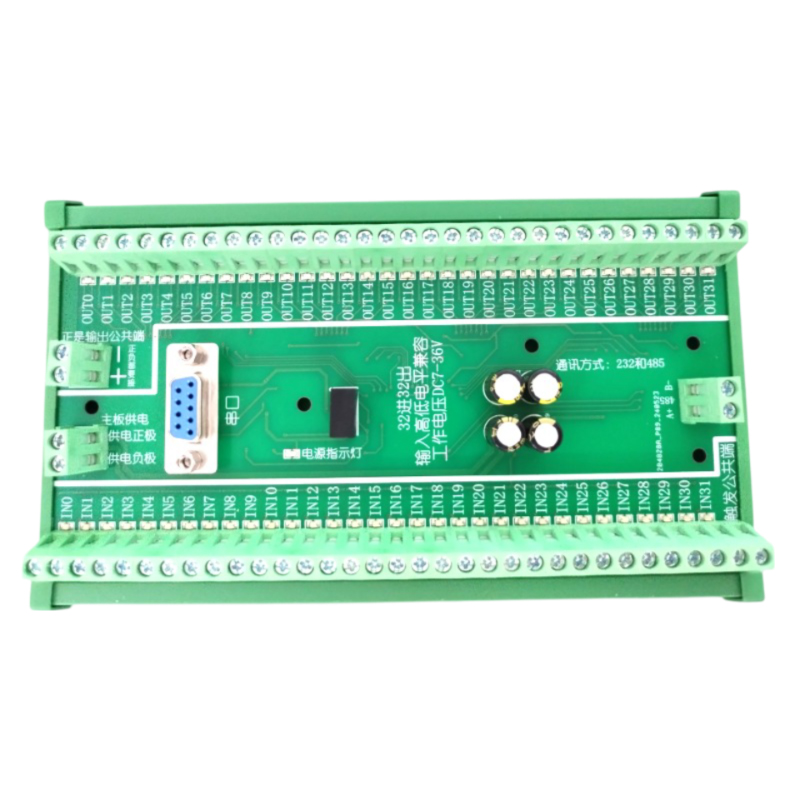

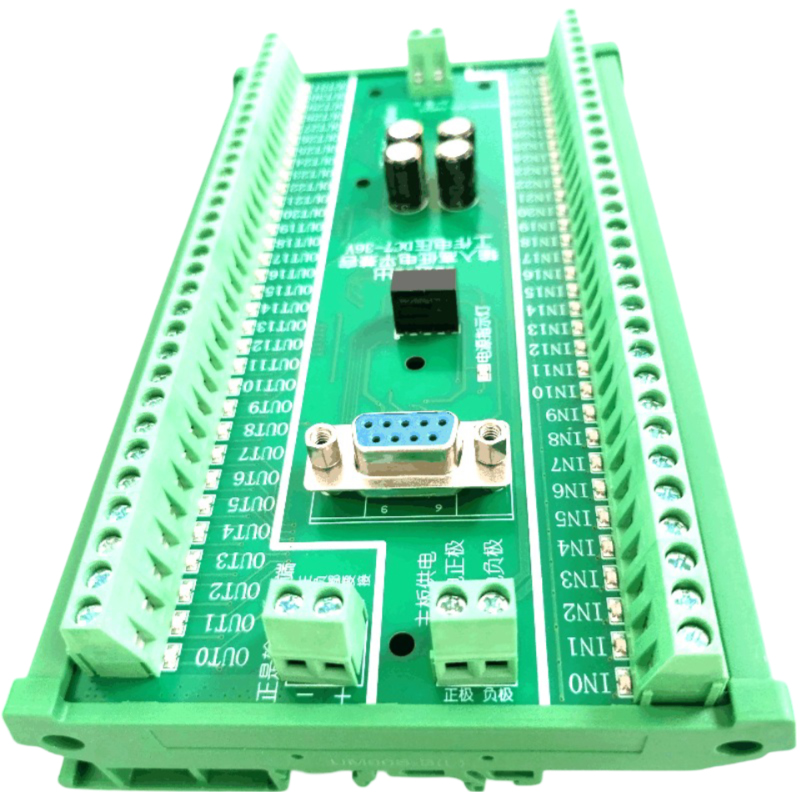

Communication quantity: 32 inputs, 32 outputs.
Input and output: both are optocoupler isolated.

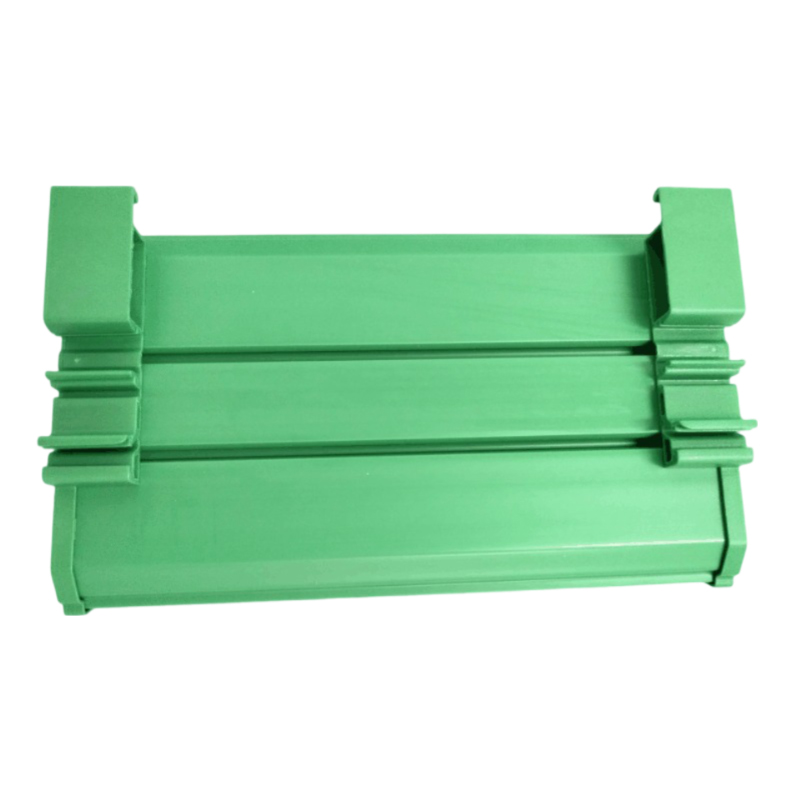

Installation method: standard 35mm rail installation.
Use: applied to projects with few ports.
Features: the board can be externally mounted, without PCI slot, and connected through the COM port of the industrial computer.
Advantages: multiple Demo development languages, support for 32-bit and 64-bit programming development
Application wiring: see the high-level or low-level input application diagram for details.
